GZG provides 3 types of pintle chains, 400 class, 500 class and 700 class.The dimensions of them are standard and we could control it in a reasonable tolerance.If you are looking for non-standard cast pintle chain, kindly let us know and we'll discuss your request.
Jwenn 3 kalite jete dimansyon chèn pintle jan pi ba a.

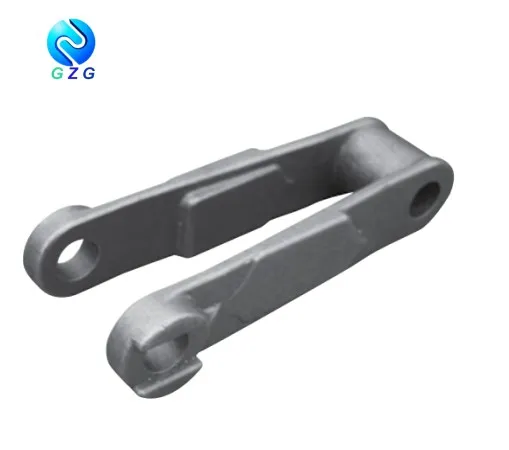

1. Jete 400 chenn Pintle Klas
 | |||||||
| Chèn Non. | Anplasman | Dimansyon | Ultim fòs | Pwa | |||
| A | B | C | D | ||||
| mm | mm | mm | mm | mm | KN | Kg/M | |
| 442 | 34.93 | 26.92 | 50.80 | 19.05 | 7.94 | 27.00 | 2.23 |
| 445 | 41.40 | 26.92 | 50.80 | 19.05 | 7.94 | 27.00 | 2.38 |
| 452 | 38.25 | 27.69 | 56.36 | 21.43 | 9.26 | 31.00 | 3.27 |
| 455 | 41.40 | 28.45 | 57.94 | 21.43 | 9.26 | 31.00 | 3.13 |
| 462 | 41.50 | 36.58 | 65.09 | 23.81 | 11.11 | 39.00 | 4.02 |
| 477 | 58.62 | 31.75 | 64.29 | 25.40 | 11.11 | 43.00 | 3.27 |
| 488 | 66.27 | 41.00 | 75.00 | 25.40 | 11.11 | 49.00 | 4.61 |
 | |||||||
| Chèn Non. | Anplasman | Dimansyon | Ultim fòs | Pwa | |||
| A | B | C | D | ||||
| mm | mm | mm | mm | mm | KN | Kg/M | |
| 4103 | 78.11 | 47.60 | 87.00 | 38.00 | 19.01 | 124.00 | 9.23 |
| 4124 | 103.20 | 58.00 | 108.00 | 44.50 | 20.64 | 166.00 | 13.69 |

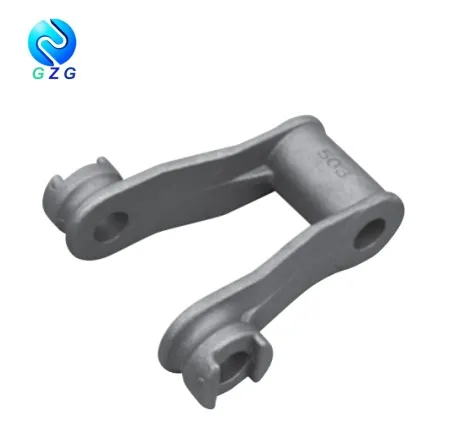

2. Jete 500700 chenn Pintle Klas
 | |||||||
| Chèn Non. | Anplasman | Dimansyon | Ultim fòs | Pwa | |||
| A | B | C | D | ||||
| mm | mm | mm | mm | mm | KN | Kg/M | |
| 503 | 76.70 | 50.80 | 107.20 | 33.30 | 14.00 | 90.00 | 9.23 |
| 504 | 103.10 | 73.20 | 146.00 | 42.90 | 16.00 | 122.00 | 12.65 |
 | |||||||
| Chèn Non. | Anplasman | Dimansyon | Ultim fòs | Pwa | |||
| A | B | C | D | ||||
| mm | mm | mm | mm | mm | KN | Kg/M | |
| 710 | 119.63 | 78.60 | 142.88 | 37.00 | 17.46 | 122.00 | 9.38 |
| 720 | 152.40 | 45.97 | 90.09 | 38.10 | 17.46 | 122.00 | 6.25 |
| 720S | 152.40 | 47.70 | 92.40 | 39.60 | 19.05 | 167.00 | 7.74 |
| 730 | 41.50 | 50.80 | 96.00 | 44.45 | 19.05 | 187.00 | 8.93 |
Ki jan nou pake chenn yo?
As the picture shows, normally we don't use carton box as how we pack roller chain. Instead, we put cast chain or drop-forged chain in transparent bag first, then use plywood case to protect them from damage.
Konbyen fason kliyan ka chwazi pou peman ak transpò?
Pou peman, nou konseye aletranje kliyan yo chwazi T / T, men lòt fason yo peye nou se akseptab tou.
Pou transpò, pifò kliyan chwazi anbake lanmè ak cha tè pou gwo lòd, chwazi eksprime pou ti lòd (si bagay la pa gwo ak lou).
Tanpri, tanpri fè nou konnen si ou bezwen nenpòt èd, voye yon imèl-oswa rele nou, nou kontan rezoud pwoblèm ou a.
