Drop-chenn fòje pou ratwa transporteurs fòme pa lyen grate, oswa konbinezon diferan nan lyen grate ak lyen traction. Lyen chèn yo fòje, epi pikèt la jeneralman trete chalè ak asye alyaj oswa tretman sifas segondè -frekans pou ogmante dite sifas peny la. Karburizasyon sifas ka amelyore rezistans nan mete nan chèn lan.
Drop fòje chèn pou jaden aplikasyon ratwa transporteur: antere l 'ratwa transporteur, gout fòje chèn se apwopriye pou machin manje, machin min, plant asye, plant pouvwa ak lòt endistri yo.
Dimansyon chenn gout-fòje pou transporteurs grate
 | |||||||||||
| Chèn Non. | Anplasman | Dimansyon | Ultim fòs | Pwa | |||||||
| A | B | C | D | E | T | 20CrMnTi | 40Cr | 42CrMo | |||
| mm | mm | mm | mm | mm | mm | mm | KN | KN | KN | Kg/M | |
| 10160B | 101.6 | 24.0 | 8.0 | 36.0 | 14.0 | 9.0 | 6.0 | 90.0 | 100.0 | 130.0 | 3.5 |
| 10160.0 | 101.6 | 30.0 | 13.0 | 36.0 | 14.0 | 14.0 | 9.0 | 120.0 | 150.0 | 200.0 | 3.8 |
| 102.0 | 102.0 | 28.0 | 12.0 | 36.0 | 14.0 | 13.0 | 8.0 | 110.0 | 140.0 | 190.0 | 3.7 |
| 102F | 102.0 | 33.5 | 14.0 | 38.0 | 14.0 | 15.0 | 10.0 | 150.0 | 180.0 | 230.0 | 4.0 |
| 125.0 | 125.0 | 36.0 | 15.0 | 36.0 | 16.0 | 16.0 | 10.0 | 180.0 | 210.0 | 260.0 | 4.8 |
| 14218.0 | 142.0 | 42.0 | 19.0 | 50.0 | 25.0 | 20.0 | 12.0 | 270.0 | 350.0 | 440.0 | 10.3 |
| 14226.0 | 142.0 | 62.0 | 28.0 | 50.0 | 25.0 | 30.0 | 15.0 | 370.0 | 450.0 | 550.0 | 14.7 |
| 150.0 | 150.0 | 42.0 | 16.0 | 48.0 | 25.0 | 18.0 | 12.0 | 230.0 | 280.0 | 350.0 | 9.9 |
| 160.0 | 160.0 | 43.0 | 20.0 | 50.0 | 25.0 | 22.0 | 12.0 | 270.0 | 350.0 | 440.0 | 9.6 |
| 160F | 160.0 | 60.0 | 29.0 | 50.0 | 25.0 | 30.0 | 24.0 | 380.0 | 460.0 | 560.0 | 14.7 |
| 200.0 | 200.0 | 56.0 | 25.5 | 50.0 | 25.0 | 27.0 | 16.0 | 350.0 | 430.0 | 530.0 | 10.7 |
| 200F | 200.0 | 70.0 | 30.0 | 70.0 | 32.0 | 32.0 | 25.0 | 500.0 | 600.0 | 750.0 | 30.7 |
| 216.0 | 216.0 | 58.0 | 25.0 | 72.0 | 35.0 | 27.0 | 18.0 | 480.0 | 570.0 | 700.0 | 21.3 |
| 260.0 | 260.0 | 70.0 | 30.0 | 75.0 | 32.0 | 32.0 | 20.0 | 600.0 | 720.0 | 900.0 | 20.7 |
 | ||||||||||||||
| Chèn Non. | Anplasman | Dimansyon | Ultim fòs | Pwa | ||||||||||
| A | B | C | D | E | F | G | H | T | 20CrMnTi | 40Cr | 42CrMo | |||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | KN | Kg/M | |
| 160U | 160.0 | 43.0 | 20.0 | 50.0 | 25.0 | 22.0 | 9.0 | 10.5 | 45.0 | 12.0 | 270.0 | 350.0 | 440.0 | 12.2 |
| 200U | 200.0 | 56.0 | 25.5 | 50.0 | 25.0 | 27.0 | 18.0 | 12.0 | 42.0 | 16.0 | 350.0 | 430.0 | 530.0 | 11.0 |
 | ||||||||||||||
| Chèn Non. | Anplasman | Dimansyon | Ultim fòs | Pwa | ||||||||||
| A | B | C | D | E | F | G | H | T | 20CrMnTi | 40Cr | 42CrMo | |||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | KN | Kg/M | |
| 150D | 150.0 | 37.0 | 18.0 | 40.0 | 18.0 | 19.0 | 5.0 | 15.0 | 5.0 | 10.0 | 200.0 | 230.0 | 300.0 | 9.7 |
| 200D | 200.0 | 41.0 | 20.0 | 46.0 | 20.0 | 21.0 | 6.0 | 18.0 | 5.0 | 12.0 | 220.0 | 260.0 | 340.0 | 7.8 |

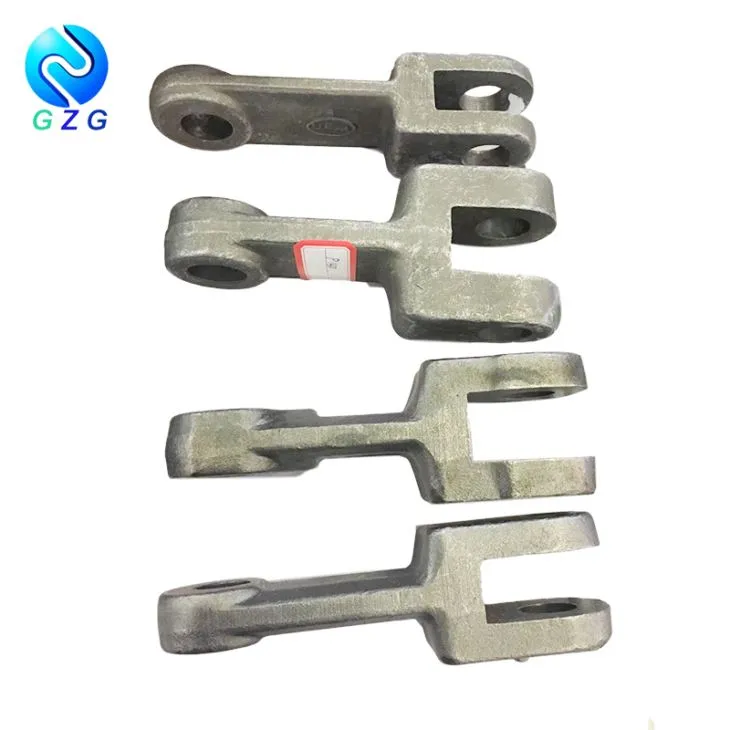

Foto drop-chèn fòje pou transporteur grate
Drop-chenn fòje pou ratwa transporteur yo vann pa PCS, kliyan yo pral enstale lè chenn yo te rive konpayi yo.
Pou transpò, kliyan ka chwazi pa lanmè, pa lè, pa courrier, pa kamyon (Sidès Azi tankou Thailand, Vyetnam)
