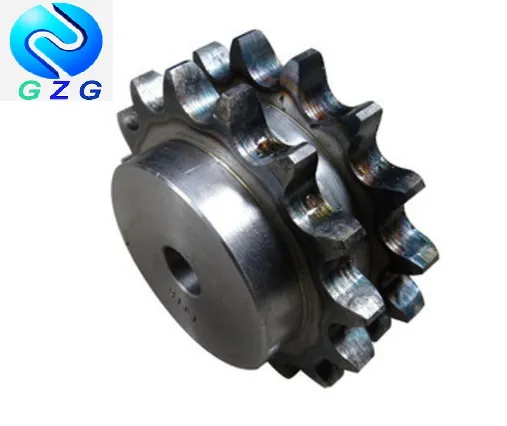

Piyon transmisyon pouvwa ANSI 50

Piyon transmisyon pouvwa ANSI 50 se yon kalite piyon ki souvan itilize nan sistèm transmisyon pouvwa mekanik. Li fèt pou transmèt koupl ak wotasyon ant arbr pa mwayen yon chèn. Estanda ANSI (American National Standards Institute) 50 refere a anplasman chèn lan - distans ki genyen ant liy santral woulèt adjasan nan chèn lan. Nan ka ANSI 50, anplasman an se 15.875 mm (0.625 pous).

Tretman sifas diferan



ANSI piyon ak mwaye

Piyon transmisyon pouvwa ANSI 50 a vini nan divès gwosè, ak diferan kantite dan ak gwosè twou. Nimewo a nan dan detèmine rapò vitès ant kondwi ak kondwi arbr, pandan y ap gwosè a twou detèmine dyamèt la nan arbr a ke piyon an ka monte sou. Piyon an ka prezante tou keyways oswa seri vis pou anpeche li glise oswa wotasyon sou arbr la.

Youn nan avantaj ki genyen nan lè l sèvi avèk yon sistèm chèn ak piyon pou transmisyon pouvwa se kapasite li nan akomode move aliyman ak chaj chòk. Chèn nan ka detire oswa konprese yon ti kras pou konpanse pou dezayaj minè ant kondwi ak kondwi arbr yo, tandiske lòt kalite sistèm transmisyon pouvwa tankou senti oswa angrenaj pa ka tolere move aliyman sa yo. Chèn nan tou kapab absòbe chaj chòk ki ka rive akòz akselerasyon toudenkou oswa ralantisman sistèm nan.

							50
							REMAK			manm
							Anplasman			15.875
							Woulo Φ			10.16
							h			8.71
							h1			8.43
							h2			26.54
							Dimansyon: mm
Dan	enpè	P.C.D	Anniye	Kalite B senp			Kalite B Duplex				Materyèl
				Mwaye		Pwa KG	Anniye	Mwaye		Pwa KG
				MARE	bri			MARE	BL
8	47.8	41.5	15.875	28.6	25.4	0.11					C45
9	53.1	46.4	15.875	111.1	25.4	0.16
10	58.4	51.4	15.875	39.7	25.4	0.22
11	63.5	56.4	15.875	44.5	25.4	0.29	15.875	37.3	44.45	0.43
12	68.8	61.3	15.875	50.4	25.4	0.37	15.875	42.9	44.45	0.56
13	73.9	66.3	15.875	47.6	25.4	0.40	15.875	47.6	44.45	0.70
14	79.0	71.2	15.875	54.0	25.4	0.51	15.875	52.4	44.45	0.84
15	84.3	76.4	15.875	60.3	25.4	0.60	19.05	58.7	44.45	1.00
16	89.4	81.4	15.875	63.5	25.4	0.68	19.05	63.5	44.45	1.18
17	94.5	86.4	15.875	68.3	25.4	0.78	19.05	68.3	44.45	1.37
18	99.6	91.4	15.875	73.0	25.4	0.90	19.05	74.6	44.45	1.61
19	104.6	96.4	15.875	76.2	25.4	1.00	25.40	79.4	44.45	1.76
20	109.7	101.5	19.05	76.2	25.4	1.03	25.40	82.6	44.45	1.92
21	114.8	106.5	19.05	76.2	25.4	1.08	25.40	88.9	44.45	2.21
22	119.9	111.6	19.05	76.2	25.4	1.15	25.40	90.5	47.63	2.51
23	125.0	116.6	19.05	76.2	25.4	1.20	25.40	92.1	47.63	2.75
24	130.0	121.6	19.05	76.2	31.75	1.49	25.40	92.1	47.63	2.93
25	135.1	126.7	19.05	76.2	31.75	1.53	25.40	92.1	47.63	3.12
26	140.2	131.7	19.05	76.2	31.75	1.55	25.40	95.3	47.63	3.39
30	160.5	151.9	19.05	78.0	31.75	2.05	25.40	95.3	47.63	4.23
32	170.7	162.0	19.05	78.0	31.75	2.23	25.40	95.3	47.63	4.71
35	185.9	177.1	19.05	78.0	31.75	2.45	25.40	95.3	47.63	5.53
36	191.0	182.1	19.05	78.0	31.75	2.54	30.16	101.6	53.98	6.27
40	211.3	202.3	19.05	78.0	31.75	2.93	30.16	101.6	53.98	7.44
95	489.5	480.1	25.4	108.0	44.45	14.40	33.34	114.3	60.33	28.94
96	494.5	485.2	25.4	108.0	44.45	14.81	33.34	114.3	60.33	30.34
102	524.8	515.5	25.4	108.0	44.45	16.34	33.34	114.3	60.33	32.71
112	575.3	566.0	25.4	108.0	44.45	18.90	33.34	133.4	60.33	40.60
