Atachman ki pi enpòte nanchèn goutse grate a. Li se sou chèn lan ki ta ka bay bagay sa yo. Gen de twou sou grafouyen an ke yo te itilize pou konekte atachman kawotchou pou fè pou evite domaj grate. Pou materyèl, nou anjeneral bay 20CrMni (lyen), 40Cr (PIN) ak Q235 (grate ak avyon).

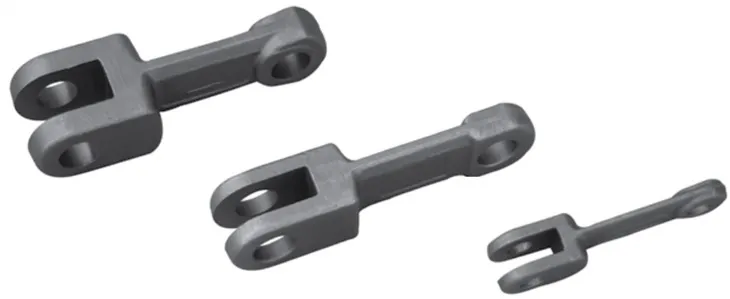

* Desen nan chèn Gout Scraper fòje chèn
* Dimansyon nan chèn Gout Scraper pou referans
| Chenn Non. | anplasman | Dimansyon | Ultim Fòs | Pwa | |||||||
| Yon | B | C | D | E | T | 20CrMnTi | 40Cr | 42CrMo | |||
| manm | manm | manm | manm | manm | manm | manm | Kounm | Kounm | Kounm | Kg/M | |
| 10160B | 101.6 | 24.0 | 8.0 | 36.0 | 14.0 | 9.0 | 6.0 | 90.0 | 100.0 | 130.0 | 3.5 |
| 10160.0 | 101.6 | 30.0 | 13.0 | 36.0 | 14.0 | 14.0 | 9.0 | 120.0 | 150.0 | 200.0 | 3.8 |
| 102.0 | 102.0 | 28.0 | 12.0 | 36.0 | 14.0 | 13.0 | 8.0 | 110.0 | 140.0 | 190.0 | 3.7 |
| 102F | 102.0 | 33.5 | 14.0 | 38.0 | 14.0 | 15.0 | 10.0 | 150.0 | 180.0 | 230.0 | 4.0 |
| 125.0 | 125.0 | 36.0 | 15.0 | 36.0 | 16.0 | 16.0 | 10.0 | 180.0 | 210.0 | 260.0 | 4.8 |
| 14218.0 | 142.0 | 42.0 | 19.0 | 50.0 | 25.0 | 20.0 | 12.0 | 270.0 | 350.0 | 440.0 | 10.3 |
| 14226.0 | 142.0 | 62.0 | 28.0 | 50.0 | 25.0 | 30.0 | 15.0 | 370.0 | 450.0 | 550.0 | 14.7 |
| 150.0 | 150.0 | 42.0 | 16.0 | 48.0 | 25.0 | 18.0 | 12.0 | 230.0 | 280.0 | 350.0 | 9.9 |
| 160.0 | 160.0 | 43.0 | 20.0 | 50.0 | 25.0 | 22.0 | 12.0 | 270.0 | 350.0 | 440.0 | 9.6 |
| 160F | 160.0 | 60.0 | 29.0 | 50.0 | 25.0 | 30.0 | 24.0 | 380.0 | 460.0 | 560.0 | 14.7 |
| 200.0 | 200.0 | 56.0 | 25.5 | 50.0 | 25.0 | 27.0 | 16.0 | 350.0 | 430.0 | 530.0 | 10.7 |
| 200F | 200.0 | 70.0 | 30.0 | 70.0 | 32.0 | 32.0 | 25.0 | 500.0 | 600.0 | 750.0 | 30.7 |
| 216.0 | 216.0 | 58.0 | 25.0 | 72.0 | 35.0 | 27.0 | 18.0 | 480.0 | 570.0 | 700.0 | 21.3 |
| 260.0 | 260.0 | 70.0 | 30.0 | 75.0 | 32.0 | 32.0 | 20.0 | 600.0 | 720.0 | 900.0 | 20.7 |
* GZG Scraper Grop forging lòd chèn
1. Mande ak site (Nov 9th, 2021)
2. Desen konfimasyon (Nov 12th, 2021)
3. Negosyasyon tan livrezon (Nov 12th, 2021)
4. Detay diskite ak siyen PI (Nov 15th, 2021)
5. Peman konfimasyon (22 novanm, 2021)
6. Òganize pwodiksyon (Nov 23rd, 2021)
7. Fini pwodwi ak process (Jan 7th, 2022)
Tanpri fè nou konnen si ou bezwen nenpòt èd pandan ankèt ou an, nou kontan ede. Epi pa enkyete sou bon jan kalite nou an, nou ankò resevwa nenpòt plent nan kliyan nou yo, GZG Transmisyon se yon patnè biznis konfyans.
