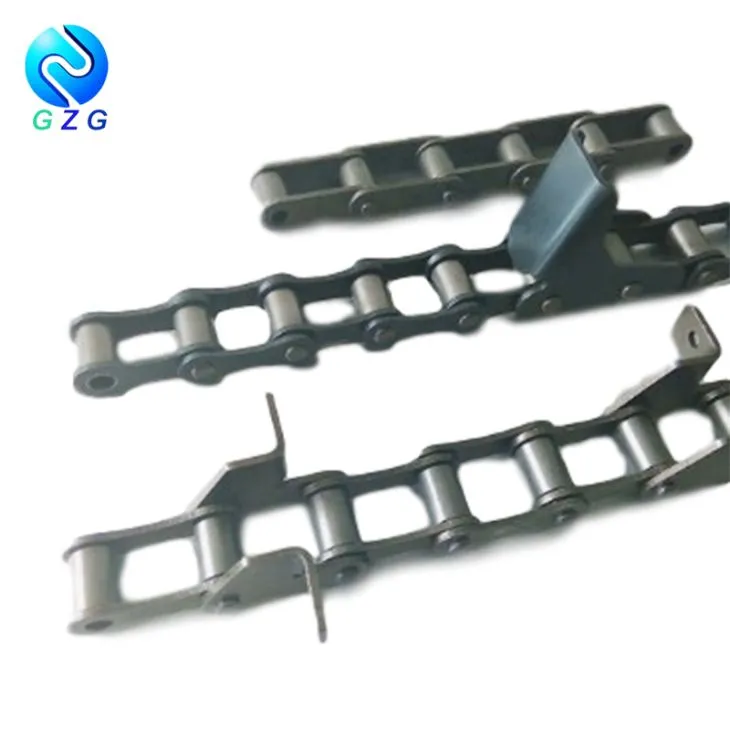

S Kalite asye Agrikòl Chain ak Dokiman siplemantè

Materyèl nan chenn: prim alyaj asye
Li se manifaktire selon ISO 487 pou ekipman fèm. Zeng-plake pou tretman sifas yo.
Kalite prensipal yo nan chèn S agrikòl kalite asye gen ladan: S 32, S 42, S 45, S 52, S 55, S {{4 }} R, S 62, S 77, S 88 elatriye. Atachman bezwen konnen kondisyon kliyan an.

S Type Steel Agricultural Chain with Attachments description

S Kalite asye Agrikòl Chain ak Dokiman siplemantè

1. Materyèl nan chenn: prim alyaj asye

2. Li fabrike selon ISO 487 pou ekipman fèm yo. Zeng-plake pou tretman sifas yo.

3. Kalite prensipal yo nan chèn S agrikòl kalite asye gen ladan: S 3 2, S 42, S 45, S 52, S 55, S {{ 5}} R, S 62, S 77, S 88 elatriye. Atachman bezwen konnen kondisyon kliyan an.

S Type Steel Agricultural Chain with Attachments catalog

Standard S kalite asye agrikòl chèn done teknik kòm anba a:

S Type Steel Agricultural Chain with Attachments drawing

Chain no.	Goudwon	Woulo Dyamèt	Lajè Ant Plak anndan	PIN Dyamèt	PIN Longè		Plak Dimansyon		Ultim Rupture Fòs	Mwayèn Rupture Fòs	Pwa Pou chak Meter
	P	D1 Max	B1 min	D2 Max	L Max	Lc Max	H2 Max	T Max	Q Min		q
	mm	mm	Mm	Mm	mm	mm	Mm	mm	KN / LB	KN	Km / m
S32	29.21	11.43	15.83	4.45	26.70	28.80	13.20	1.80	8.00/1818	21.60	0.86
S42	34.93	14.27	19.05	7.01	.34.30	37.00	19.80	2.80	26.70/6136	50.80	1.60
S45	41.40	15.24	22.23	5.72	.37.70	40.40	17.30	2.80	18.00/4091	36.10	1.66
S52	38.10	15.24	22.23	5.72	37.70	40.40	17.30	2.80	18.00/4091	36.10	1.68
S55	41.40	17.78	22.23	5.72	37.70	40.40	17.30	2.80	18.00/4091	36.10	1.80
S55R	41.40	17.78	22.23	8.90	41.00	44.00	22.40	3.50	45.00/10227	73.10	2.49
S62	41.91	19.05	26.20	5.72	40.30	43.00	17.30	2.50	26.70/6067	36.10	1.87
S77	58.34	18.26	22.23	8.92	43.20	46.40	26.20	4.00	45.00/10227	73.10	2.65
S88	66.27	22.86	28.58	8.90	49.80	53.00	26.20	4.00	45.00/10227	73.10	3.25
